SPAR
3The Chinese University of Hong Kong 4Deepeleph Intelligent Technology **ECCV 2026** [[Project Page](https://dmucby.github.io/projects/SPAR/)] [[Paper](https://arxiv.org/abs/2608.29177)] [[Code](https://github.com/dmucby/SPAR)] *Corresponding author
News
- 2026-09: Initial SPAR code release.
- 2026-08: The paper was released on arXiv.
- 2026.06: SPAR was accepted to ECCV 2026.
Overview
The integration of novel view synthesis (NVS) and open-vocabulary segmentation (OVS) has recently yielded powerful feed-forward 3D foundation models. However, their inherent reliance on static-scene assumptions leads to severe misalignment of spatial features in unconstrained dynamic environments. To bridge this critical gap, we propose SPAR, a novel joint semantic-geometric encoding architecture that explicitly isolates transient dynamic noise prior to latent space aggregation. Furthermore, we introduce a dynamic-region-aware end-to-end training paradigm that structurally couples motion estimation with multi-view visual and semantic learning. This unified approach enables the network to inherently resolve motion conflicts and distill multi-view consistent, temporally stable scene representations from dynamic inputs.
Extensive experiments on the challenging D-RE10K benchmark demonstrate that SPAR achieves state-of-the-art performance. Our end-to-end approach achieves exceptional novel view synthesis quality, yielding a PSNR of 22.15 dB and 23.33 dB given only 3 and 4 input views respectively. Despite being trained in a self-supervised manner, our model achieves an mIoU of 88.5% for motion mask prediction. Furthermore, our analysis reveals a strong inter-task synergy between photometric scene reconstruction and semantic understanding, where semantic synthesis learning consistently enhances photometric fidelity in novel view rendering.
Release note: the current public evaluator uses raw CV-DRP masks and does not run optional SAM2 refinement. Refer to the paper for the complete motion-mask evaluation protocol.

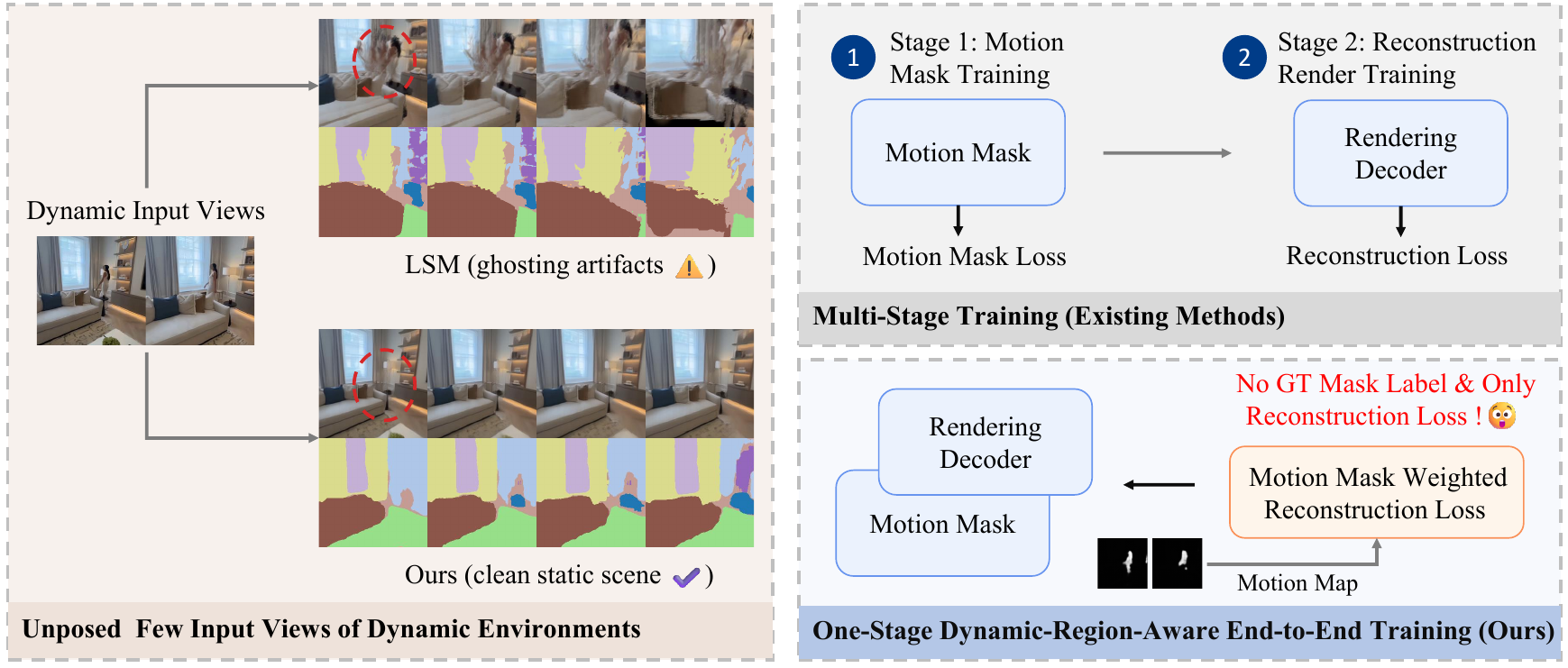

SPAR takes a few unposed views of a dynamic environment and renders clean target-view RGB images and open-vocabulary semantic predictions in one feed-forward pass.
1. Preparation
Environment
The reference environment uses Python 3.10, CUDA 12.1, and PyTorch 2.4.1.
git clone --recurse-submodules https://github.com/dmucby/SPAR.git
cd SPAR
conda create -n spar python=3.10
conda activate spar
python -m pip install --upgrade pip
python -m pip install -r requirements.txt
If the repository was cloned without submodules:
git submodule update --init --recursive
Data
The code has been tested with the following local data layout. These paths match configs/spar/spar.yaml:
datasets/
├── Dynamic-RE10K/
│ ├── train_official/
│ │ ├── full_list.txt
│ │ ├── metadata/
│ │ └── images/
│ └── test_zip/
│ ├── metadata/
│ ├── images/
│ ├── binary_masks/
│ ├── pseudo_labelmaps/
│ └── videos/
└── re10k-full_processed/
└── train/
├── full_list.txt
├── metadata/
└── images/
Human-verified D-RE10K masks are used only for evaluation. SPAR does not require ground-truth motion masks for training. COCO assets used by the optional copy-paste training branch are not part of the tested local tree above; set training.copy_paste.coco_annotation_path and training.copy_paste.coco_image_dir before enabling that branch. The paper additionally reports semantic evaluation on ScanNet; that separate evaluation path is outside this minimal release.
Checkpoints
Place the final SPAR checkpoint and external backbones at the following paths:
| Asset | Default path |
|---|---|
| Final SPAR checkpoint | checkpoints/spar.pt |
| DINOv3 ViT-B/16 | datasets/pretrained/dinov3_vitb16_pretrain_lvd1689m-73cec8be.pth |
| LSeg | datasets/checkpoints/lseg/demo_e200.ckpt |
| Reconstruction/CV-DRP initialization | checkpoints/spar_reconstruction_init.pt |
| VGG perceptual weights | metric_checkpoint/imagenet-vgg-verydeep-19.mat |
The final checkpoint is 7,471,393,494 bytes (approximately 7.0 GiB) and is intended to be distributed through Hugging Face rather than Git. DINOv3 and LSeg assets remain subject to their original licenses.
2. Method

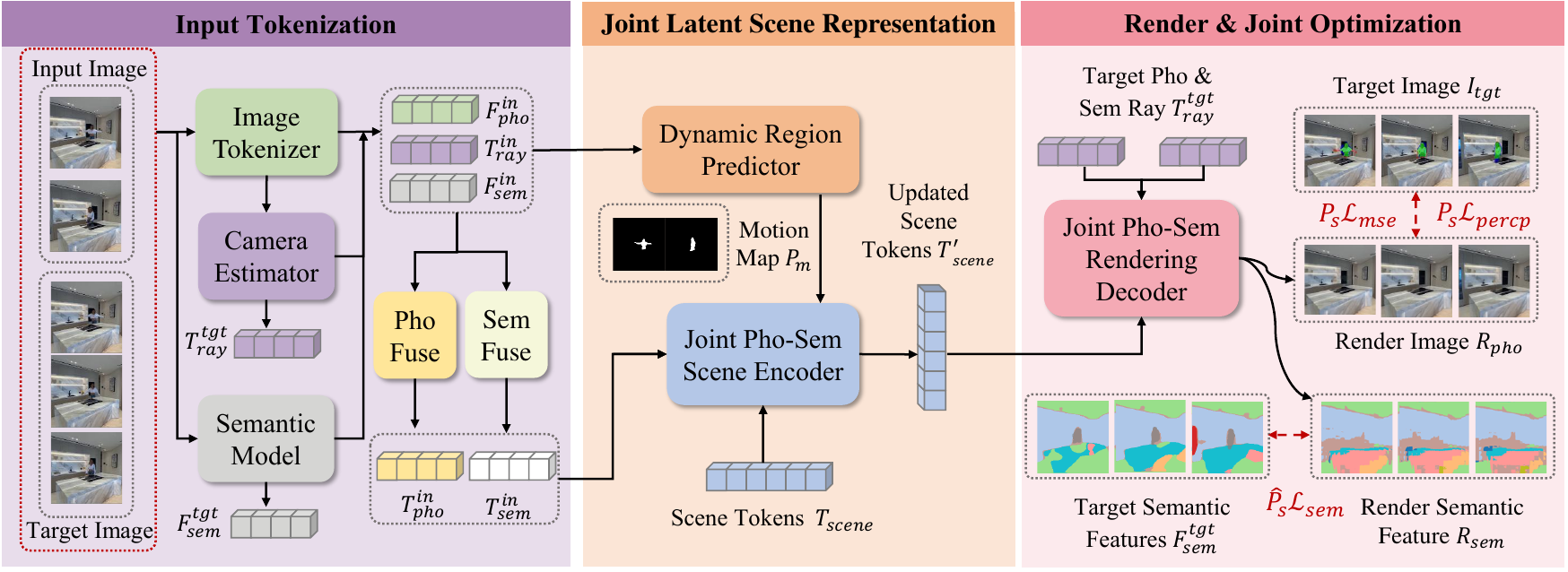

SPAR is a Semantic-Photometric-Aware Reconstruction framework for joint novel-view synthesis and open-vocabulary semantic understanding from sparse, unposed, and dynamic views. Its main components are:
- Pose-conditioned tokenization: image features, semantic features, and estimated Plucker rays are embedded into photometric and semantic tokens.
- Cross-View Dynamic Region Predictor (CV-DRP): cross-view semantic, appearance, and geometric cues identify transient foreground regions before scene aggregation.
- Joint photometric-semantic scene encoder: predicted dynamic regions are suppressed while static multi-view evidence is aggregated into a compact scene representation.
- Dual-head rendering decoder: target-view RGB images and semantic features are rendered from the shared scene representation.
- Dynamic-region-aware optimization: predicted masks spatially weight photometric and semantic reconstruction losses, coupling CV-DRP and rendering in one end-to-end objective without manual motion labels.
3. Training
The paper setting uses 8 NVIDIA A800 GPUs, 20K end-to-end iterations, a learning rate of 2e-4, cosine scheduling, 256 x 256 images, 16 x 16 patches, and 768 scene tokens.
CUDA_VISIBLE_DEVICES=0,1,2,3,4,5,6,7 \
NPROC_PER_NODE=8 \
bash train_spar.sh
The launcher reads configs/spar/spar.yaml. Paper reproduction initializes from checkpoints/spar_reconstruction_init.pt; training from scratch is available only as an explicit ablation with training.allow_train_from_scratch=true.
For online Weights & Biases logging, set WANDB_MODE=online and provide WANDB_API_KEY. Offline logging is used by default.
4. Inference
Full 76-scene D-RE10K evaluation
The following command evaluates every scene found under test_zip/metadata with 2 input and 6 target views:
CUDA_VISIBLE_DEVICES=0 python test_spar.py \
--single_gpu \
--config configs/spar/spar.yaml \
--checkpoint ./checkpoints/spar.pt \
--test_root ./datasets/Dynamic-RE10K/test_zip \
--num_input_views 2 \
--fix_total_views 8 \
--mask_source raw \
--output_dir ./outputs/dre10k_raw_n2 \
--no_save_vis \
--no_eval_semantic
Results are written to summary.json, per_scene_metrics.json, and summary.csv in the output directory.
Batch evaluation for 2, 3, and 4 input views
for num_views in 2 3 4; do
CUDA_VISIBLE_DEVICES=0 python test_spar.py \
--single_gpu \
--config configs/spar/spar.yaml \
--checkpoint ./checkpoints/spar.pt \
--test_root ./datasets/Dynamic-RE10K/test_zip \
--num_input_views "${num_views}" \
--fix_total_views 8 \
--mask_source raw \
--output_dir "./outputs/dre10k_raw_n${num_views}" \
--no_save_vis \
--no_eval_semantic
done
The public evaluator uses raw CV-DRP masks. SAM2 refinement is disabled. --mask_source gt is retained only as an oracle diagnostic.
5. Results
Dynamic novel-view synthesis on D-RE10K
| Input views | PSNR | SSIM | LPIPS |
|---|---|---|---|
| 2 | 19.97 | 0.627 | 0.339 |
| 3 | 22.15 | 0.702 | 0.283 |
| 4 | 23.33 | 0.739 | 0.263 |
Qualitative results

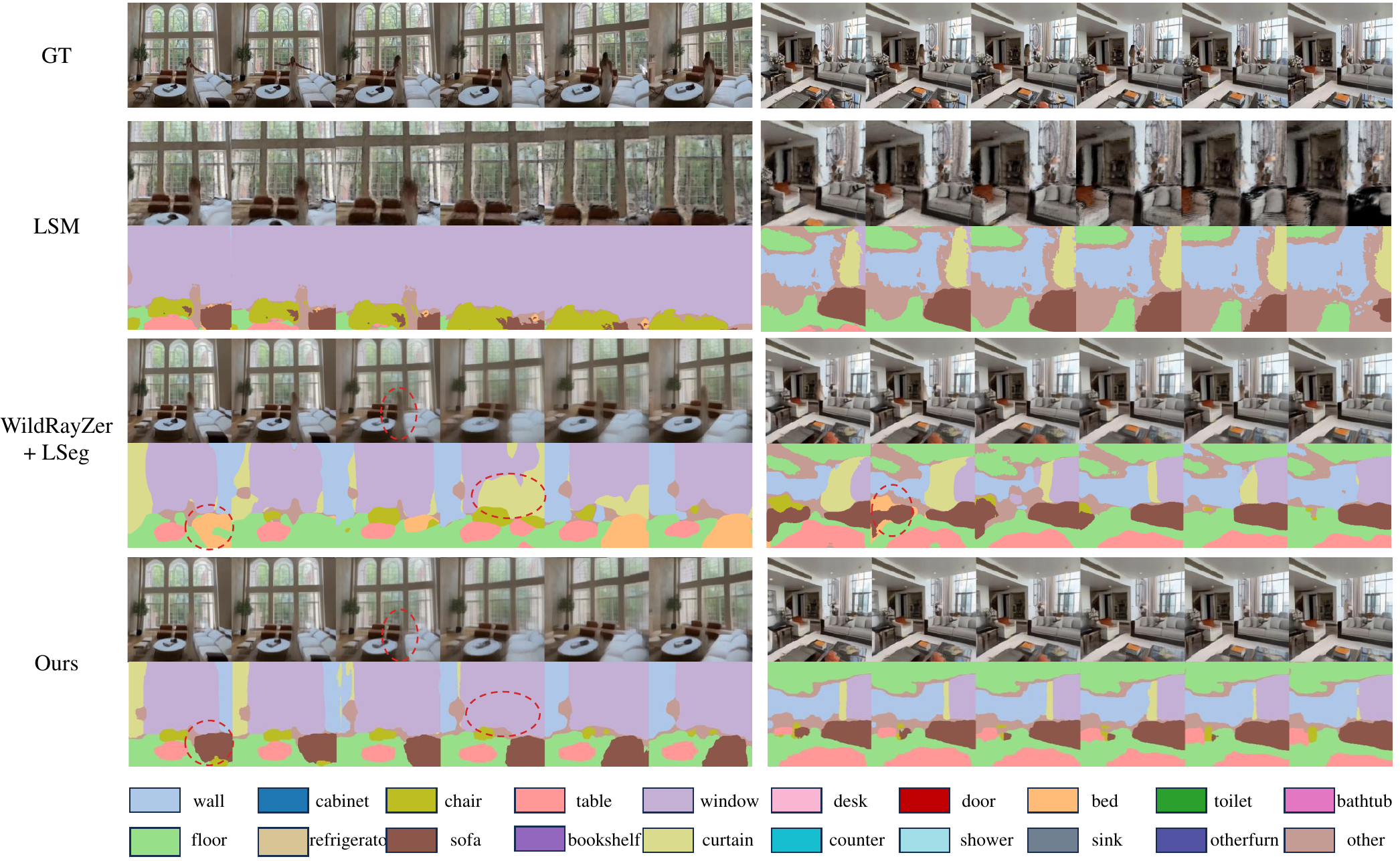

Qualitative comparison of novel-view synthesis and semantic segmentation on dynamic scenes, reproduced directly from the paper.

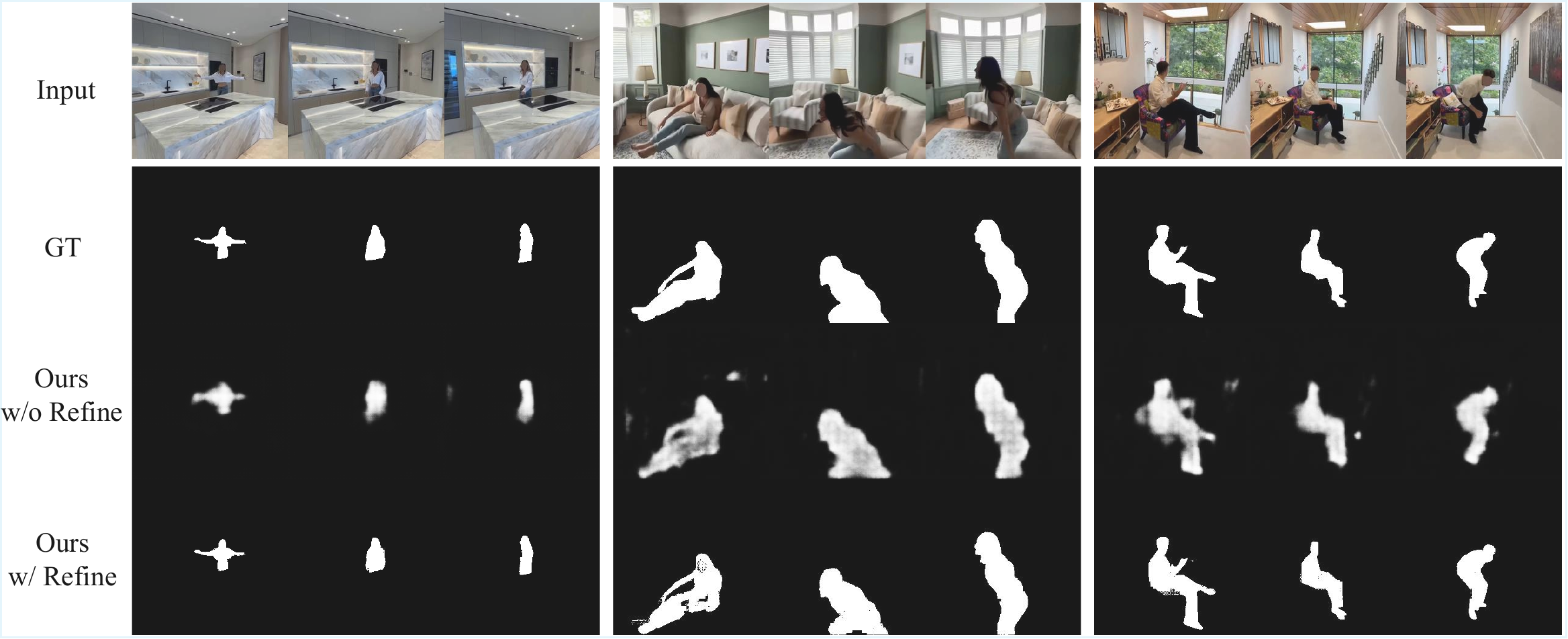

Qualitative results of the Dynamic Region Predictor on diverse multi-view sequences, reproduced directly from the paper. The public evaluator corresponds to the Ours w/o Refine row and does not initialize SAM2.
Joint rendering on ScanNet
| mIoU | Accuracy | PSNR | SSIM | LPIPS |
|---|---|---|---|---|
| 0.5271 | 0.8061 | 26.43 | 0.8052 | 0.2407 |
See the paper for the complete comparisons, motion-mask evaluation, ablations, and qualitative results.
6. Known Issues
- Keep the total number of views consistent with training. For the released setup, use
--fix_total_views 8. - The current release evaluates raw CV-DRP masks and does not initialize SAM2 refinement.
- The bundled evaluator covers D-RE10K. Reproducing the paper’s ScanNet semantic table requires the separate semantic evaluation path.
Citation
If you find this work useful, please cite:
@inproceedings{cai2026spar,
title = {Dynamic-Robust Photometric-Semantic Reconstruction for
Open-Vocabulary 3D Scene Understanding},
author = {Cai, Boyu and Yang, Li and Xu, Yan and Liu, Wei and Liu, Nian
and Zhang, Sikui and Wang, Yan and Yuan, Chunfeng and Hu, Weiming},
booktitle = {European Conference on Computer Vision (ECCV)},
year = {2026}
}
License
The project code is released under CC BY-NC-SA 4.0. Third-party components retain their original licenses; see THIRD_PARTY_NOTICES.md. Datasets and pretrained weights remain subject to their owners’ terms.
Acknowledgements
This codebase builds upon LVSM, RayZer, and WildRayZer. We thank their authors for releasing the code.
